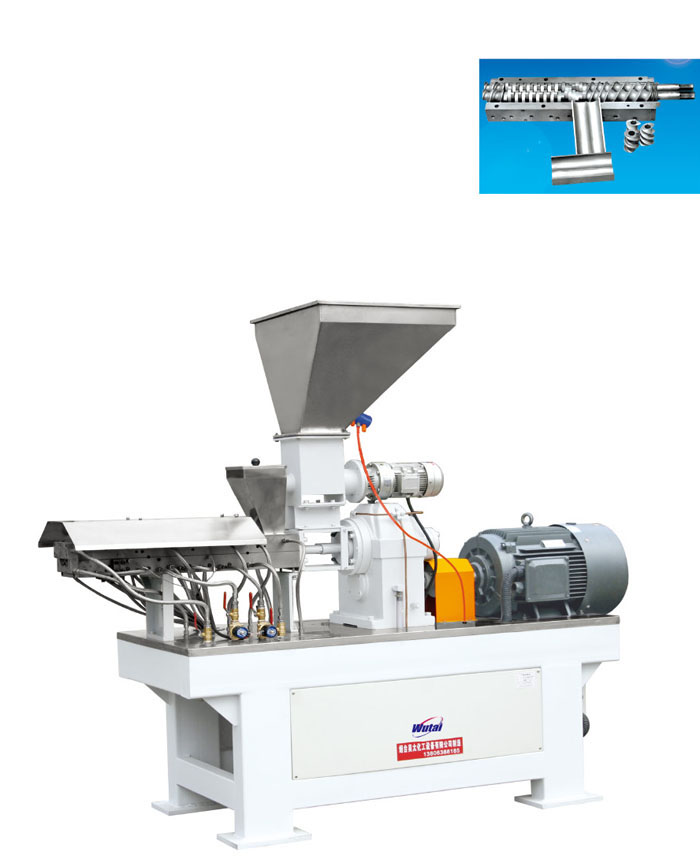

GSJ系列雙螺桿擠出機GSJ series twin screw extruder
該機是高速雙螺桿擠出機，產量高，原料的分散及混煉效果好，螺桿特殊排列，高速旋轉，螺筒襯瓦可互換，是擠出化學原料的設備。
主要特點：
*高產出量和良好的混煉效果。
*機筒具有高效熱交換及溫度自動控制系統。
*機筒對開設計，清機、維修方便。
*螺桿可靈活組合。
*具有優良的自清潔能力。
*進料系統備有計量螺桿，進料量準確均勻。
*操作安全可靠。
*采用先進溫控表雙向PID控制±2℃。
*螺套采用分段式襯瓦設計。
*進料口配強磁保護。
*采用專用硬齒面擠出機減速箱，低噪音，高效可靠。
*油路電控自動報警
*螺筒設有軟化水自動循環冷卻系統（選配）
*喂料采用按摩或擺動裝置，防止物料打橋架空（選配）
GSJ series twin screw extruder
This machine is high speed twin screw extruder with special screw element design with two co-rotating screw shafts. ,high output capacity ,good wear resistance and exchangeable liners . The raw material in barrel is to be excellent dispersed and kneaded causing the screw elements and kneading blocks on the two shafts are precisely meshed together. This extruder is one ideal equipment for extruding various chemical materials.
Features
*New and efficient heating system, replacement conveniently
*Direct and removable water cooling system, easy cleaning
*Perfect kneading effect ,high output
*Barrel equipped with high efficient heat exchange and automatic temperature controlled system
*The opposite open barrel design ,easy to clean
*Hopper with screw shaft ensure the uniform material feeding
*Automatic alarm of lubricating oil control system
*Advanced two way PID temperature control system with tolerance ±2 ℃
*The clamshell barrel cooled by automatic recycle filter water (optional equipment)
*To void the raw material jam in the hopper , the feeder is with vibrate or swing system(optional equipment)
*There is strong permanent metal magnetic detector system
型號及規格Specification
型號Model |
33-50 |
50-60 |
50-80 |
58-90A |
58-90B |
65-100 |
70-110 |
|
產量Output(kg/h) |
40-80 |
100-150 |
200-300 |
350-450 |
450-550 |
600-700 |
800-1000 |
|
螺桿直徑Screw Dia(mm) |
Ø 33 |
Ø50 |
Ø 50 |
Ø 58 |
Ø 58 |
Ø 65 |
Ø 70 |
|
長徑比Screw length(l/d)) |
15:1 |
13:1 |
16:1 |
16:1 |
16:1 |
16:1 |
16:1 |
|
主電機Main motor(kw) |
7.5 |
15 |
22 |
30 |
37 |
45 |
75 |
|
螺桿轉速Screw speed(rpm) |
510 |
500 |
700 |
730 |
730 |
730 |
730 |
|
喂料電機Feeding motor(kw) |
0.37 |
0.75 |
0.75 |
1.1 |
1.5 |
1.5 |
2.2 |
|
